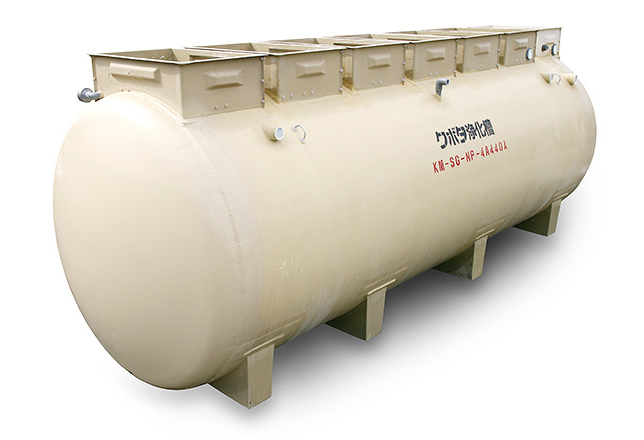

KM-SG-NP type

Membrane bioreactor(MBR) process

・Capable of removing nitrogen and phosphorus by combination of membrane separation + circulation-type highly concentrated activated sludge system + coagulation dephosphorization technology.

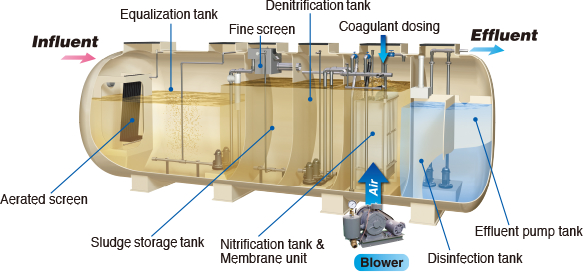

Cross-section perspective

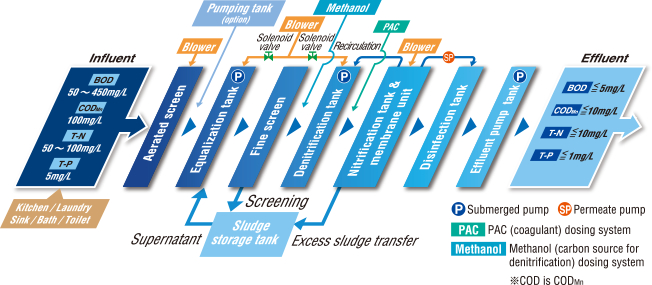

Flow Sheet

Specifications (inf. BOD 200 mg/L)

Flow ratem3/day2040100200
Tank size
(Φ2,500 × 2,800H)		L(mm)8,5506,100 + 7,9507,350 + 8,450
+ 7,350 + 8,500		8,250 + 8,250 + 6,950 + 7,700
+ 8,250 + 8,300 + 6,900 + 7,700
Rated Power(380V)kW4.04.78.814.9

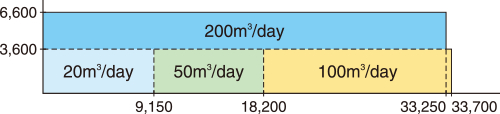

Size
