K-HC-T type
Peak-cut flow solid-liquid separation anaerobic filter moving bed media filter process
・Capable of handling up to 148 persons (29.6 m3/day) with one tank.
・The capacity of the solid-liquid separation tank can be increased as a customization measure against high BOD load wastewater.

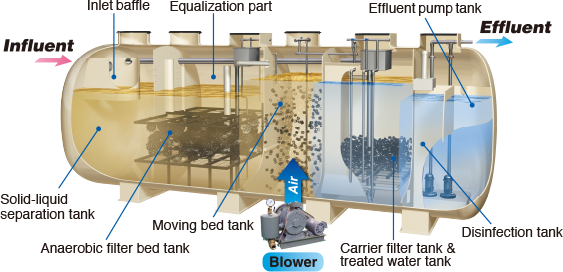

Cross-section perspective

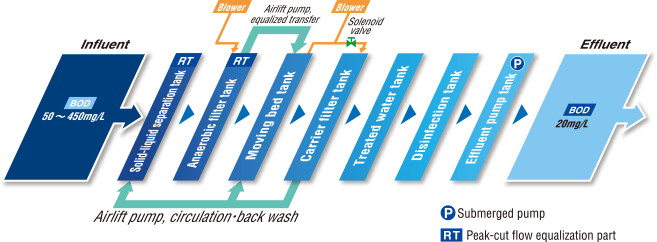

Flow Sheet
Specifications (inf. BOD 200 mg/L)
| Flow rate | m3/day | 10 | 15 | 20 | 30 | |
|---|---|---|---|---|---|---|
| Tank size (Φ2,500 x 2,800H) | L(mm) | 5,500 | 6,600 | 8,150 | 7,650 + 3,950 | |
| Rated power (380V) | kW | 1.20 | 1.20 | 1.55 | 1.55 | |
| Tank size (Φ2,050 x 2,800H) | L(mm) | 6,650 | 9,050 | 7,800 + 3,850 | 8,325 + 8,325 | |
| Rated power (380V) | kW | 1.55 | 1.55 | 1.55 | 2.30 | |

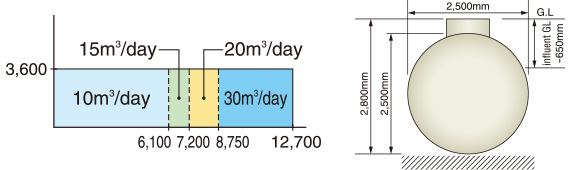

Size (mm) : In case of Φ2,500

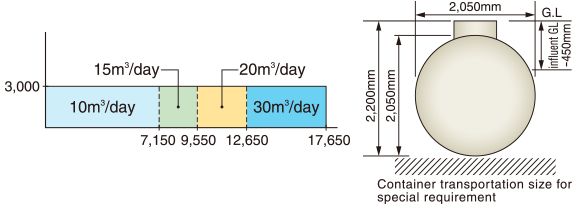

Size (mm) : In case of Φ2,050
