K-HC-R type
Flow equalization-type moving bed media filter process
・Achieve stable treatment with the flow control function + moving bed carrier filter process.
・Adaptable to various building applications by changing the flow control ratio.

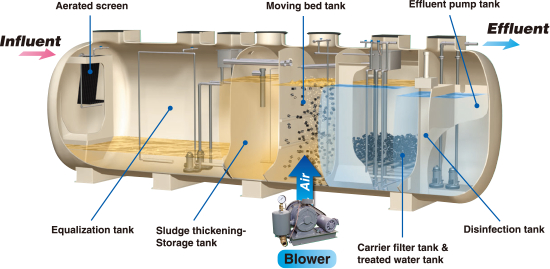

Cross-section perspective

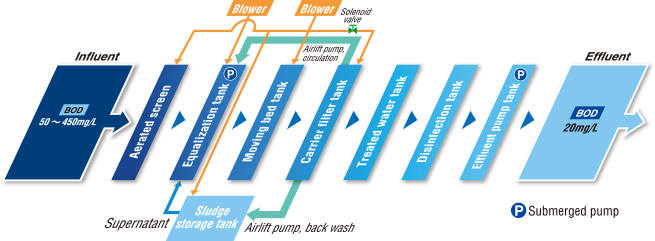

Flow Sheet
Specifications (inf. BOD 200 mg/L)
| Flow rate | m3/day | 20 | 30 | 70 | 100 | |
|---|---|---|---|---|---|---|
| Tank size (Φ2,500 x 2,800H) | L(mm) | 6,050 | 7,450 | 7,250 + 8,050 | 10,000 + 6,100 + 5,400 | |
| Rated power (380V) | kW | 2.55 | 2.55 | 3.40 | 3.50 | |
| Tank size (Φ2,050 x 2,800H) | L(mm) | 7,950 | 10,700 | 4,150 + 9,650 + 9,650 | 9,200 + 10,650 + 5,850 + 7,250 |
|
| Rated power (380V) | kW | 2.55 | 2.55 | 4.55 | 4.55 | |

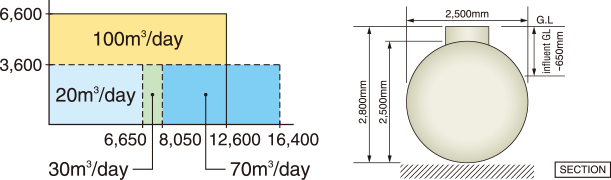

Size (mm) : In case of Φ2,500

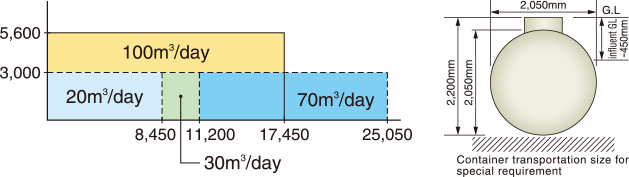

Size (mm) : In case of Φ2,050
