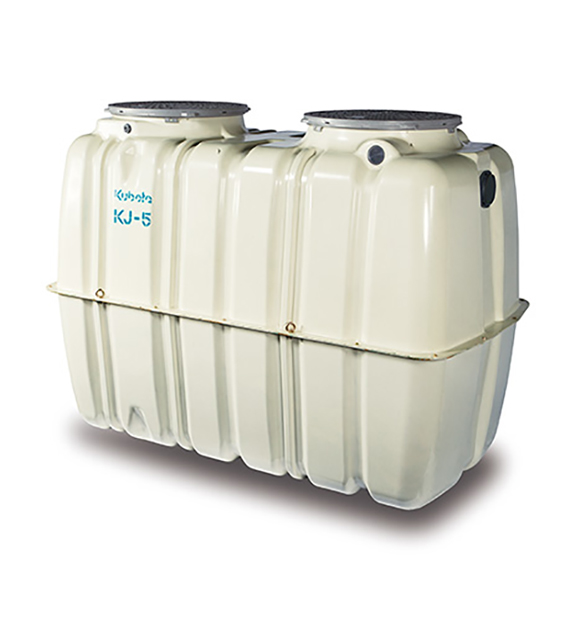

KJ type
Sedimentation-separation anaerobic filter moving bed process
・All types of wastewater treatment plants (johkasou) are designed shallow, with an overall height of 1,550 mm, and a 50 mm vertical space between the bottom of the inflow and discharge pipes.
・Environmentally friendly with ability to eliminate BOD, nitrogen and suspended solids.
・Simple maintenance by using parts with enhanced visibility and operability, and without the need for backwash cleaning.

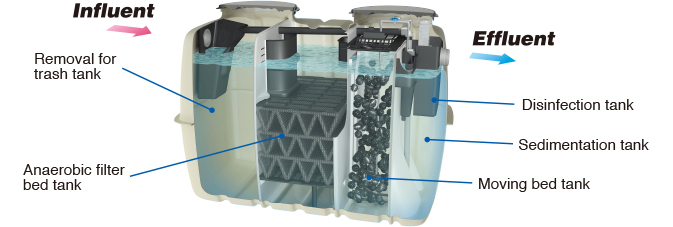

Cross-section perspective
Specifications (inf. BOD 200 mg/L)
| Model | KJ-5 | KJ-7 | KJ-10 | ||
|---|---|---|---|---|---|
| Flow rate (m3/day) | 1.0 | 1.4 | 2.0 | ||
| Dimensions (mm) | Length A | 2,190 | 2,790 | 3,060 | |
| Width B | 1,120 | 1,200 | 1,660 | ||
| Height C | 1,550 | 1,550 | 1,550 | ||
| Manhole number | Φ450 | - | 2 | 1 | |
| Φ600 | 2 | 1 | 2 | ||
| Inf.eff.pipe dia. (mm) | Φ100 | ||||
| Air pipe dia. (mm) | Φ13 | ||||
| Capacity (m3) | Removal for trash tank | 0.752 | 1.058 | 1.504 | |
| Anaerobic filter tank | 0.753 | 1.053 | 1.510 | ||
| Moving Bed tank | 0.469 | 0.626 | 0.899 | ||
| Sedimentation separation tank | 0.320 | 0.461 | 0.705 | ||
| Disinfection tank | 0.021 | 0.021 | 0.021 | ||
| Total capacity | 2.315 | 3.219 | 4.639 | ||
| Blower air flow rate (L/min) | 60 | 80 | 120 | ||

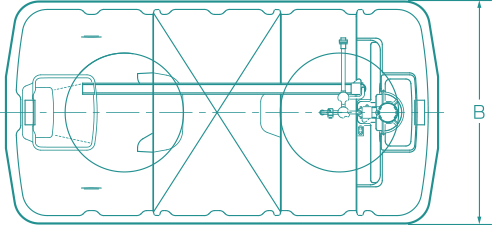

Drawing example
