| Capacity | 60m3/min (H=10m / in Parallel Operation) 30m3/min (H=20m / in Serial Operation) |
|---|---|
| Vehicle | 22 tons vehicle (Total vehicle weight : approx. 17,300kg) |
| Pump | Submersible Motor Pump (φ200mm) x 12sets Capacity per pump : 5.0m3/min (10m) Capacity per pump : 2.5m3/min (20m) Weight per 1 pump : 35kg (not including cables) |
| Drive | Generator (300kVA) |
| Major Accessories | Hose, Halogen Lighting, Float etc. |

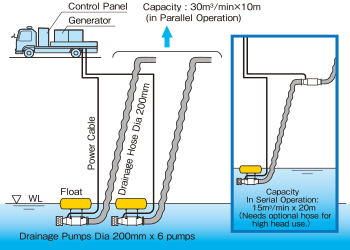

| Flow |  |
Drainage Pump VehicleDrainage Pump with Vehicle
Download CatalogDownload Catalog (for USA Market)
1. High Mobility
Everything needed for pumping is mounted on the vehicle, including ultralight submersible pumps which can be easily handled and moved manually by hands. Therefore, it will be operational promptly after arriving at sight.
2. Wide Product Range
Discharging capacity could be selected from 60m3 to 20m3, depending on various flooded conditions.
3. Original Ultralight Submersible Pump
Pump in the unit is compact and light with 3 models, Extra-low Water Level Suction Model, High Capacity Model and High Lift Model.
Youtube
Application
Specifications
- 60m3 Drain Pump Vehicle
(convertible to 30m3 with high head) - 30m3 Drain Pump Vehicle
(convertible to 15m3 with high head)

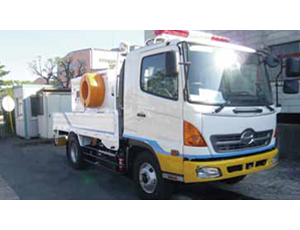

- 20m3 Drain Pump Vehicle
(8 tons truck type) - 20m3 Drain Pump Vehicle
(convertible to 10m3 with high head)
| Capacity | 30m3/min (H=10m / in Parallel Operation) 15m3/min (H=20m / in Serial Operation) |
|---|---|
| Vehicle | 11 tons vehicle (Total vehicle weight : approx. 9,500kg) |
| Pump | Submersible Motor Pump (φ200mm) x 6sets Capacity per pump : 5.0m3/min (10m) Capacity per pump : 2.5m3/min (20m) Weight per 1 pump : 35kg (not including cables) |
| Drive | Generator (125kVA) |
| Major Accessories | Hose, Halogen Lighting, Float etc. |

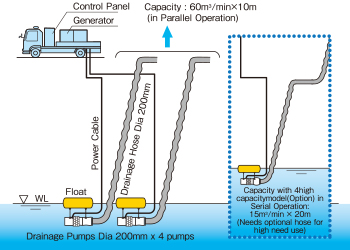

| Flow |  |
| Capacity | 30m3/min (H=10m / in Parallel Operation) |
|---|---|
| Vehicle | 8 tons vehicle (Total vehicle weight : approx. 7,950kg) |
| Pump | Submersible Motor Pump (φ200mm) x 4sets Capacity per pump : 7.5m3/min (10m) Weight per 1 pump : 40kg (not including power cables) |
| Drive | Generator (125kVA) |
| Major Accessories | Hose, Halogen Lighting, Float etc. |
| Flow |  |
| Capacity | 20m3/min (H=10m / in Parallel Operation) 10m3/min (H=20m / in Serial Operation) |
|---|---|
| Vehicle | 8 tons vehicle (Total vehicle weight : approx. 7,500kg) |
| Pump | Submersible Motor Pump (φ200mm) x 4sets Capacity per pump : 5.0m3/min (10m) Capacity per pump : 2.5m3/min (20m) Weight per 1 pump : 35kg (not including power cables) |
| Drive | Generator (100kVA) |
| Major Accessories | Hose, Balloon Lighting, Float etc. |

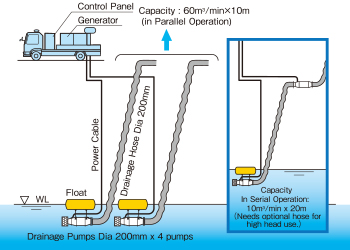

| Flow |  |
