Desalination

Equipments for total high efficiency

Kubota, a pioneer in water equipment and facilities, has been supplying various pumps for desalination plant.
The plant efficiency is greatly influenced by pump operating characteristics such as total performance, suction performance, durability, reliability, and etc, which could be fully satisfied by Kubota pumps, proven throughout many years of experience in this field.
And now, Kubota is suppling not only pumps but also energy recovery devise to offer the best total efficiency of the RO desalination plant.

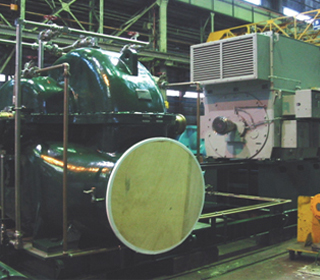

Experience 1. Double Suction Volute Pump

DV-L

Jebel Ali Power and Desalination Station “M” Dubai Electricity and Water Authority

• CountryUAE
• Bore900mm x 900mm
• Capacity134.3m³/min
• Total Head17m
• Motor Output583kW
• Supplied Year2009

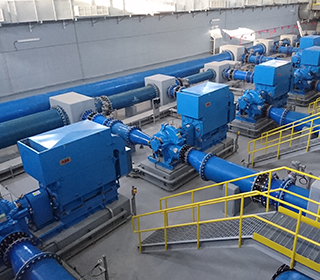

Experience 2. Double Suction Volute Pump

DV-L

Ghubrah RO Desalination Pump Station

• CountryOman
• Bore500mm x 300mm
• Capacity36.6m³/min
• Total Head120m
• Motor Output1,200kW
• Supplied Year2014

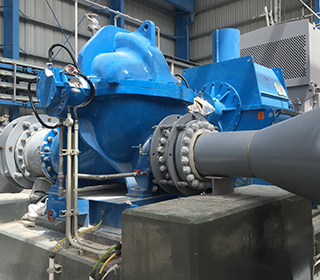

Experience 3. Double Suction Volute Pump

DV-LJ

Ras Abu Fontas A3

• CountryQatar
• Bore600mm x 350mm
• Capacity56.8m³/min
• Total Head73m
• Motor Output1,250kW
• Supplied Year2016
